FireMaster A1 Fire Curtain – BS EN 1634-1

Key Information
  • Curtain Types: Fire Curtains
  • Product Standards: BS EN 1634-1, BS EN 1634-3
  • Standards: BS - British, EN - European
  • Orientations: Vertical
  • Integrity Ratings: Up to 180 mins
  • Special Features: Compliant to BS EN 1634-1. Radiation Control up to 30mins. Smoke seals available for Smoke Control for Single Width curtains. Available in Unlimited Widths. ResQ-Window compatible.
fire icon Vertical icon 180 minutes fire rating

Quick Links
Sizes and Classification | Description | Downloads | Resources

Select your Product Standard:

BS 8524-1 BS EN 1634-1 UL 10D

Vertical - Single Roller 6m width x 8m drop (Maximum Size) E120 EW30 (E=Integrity, EW=Radiance)
Vertical - Single Roller 6m width x 7m drop (Maximum Size) E180 EW30 (E=Integrity, EW=Radiance)
Vertical - Overlapping Rollers (400mm Overlap) Unlimited width x 5m high E120 EW30 (E=Integrity, EW=Radiance)
Vertical - Overlapping Rollers (600mm Overlap) Unlimited width x 6m high E120 EW30 (E=Integrity, EW=Radiance)



The BS EN 1634-1 compliant FireMaster A1 active fire curtain barrier CAN BE INSTALLED INTO ALL building types, and is supplied with the Coopers Total Gravity Fail Safe (TGFS) system and features variable speed, controlled descent, limits radiation, smoke leakage, emergency egress and side channels.

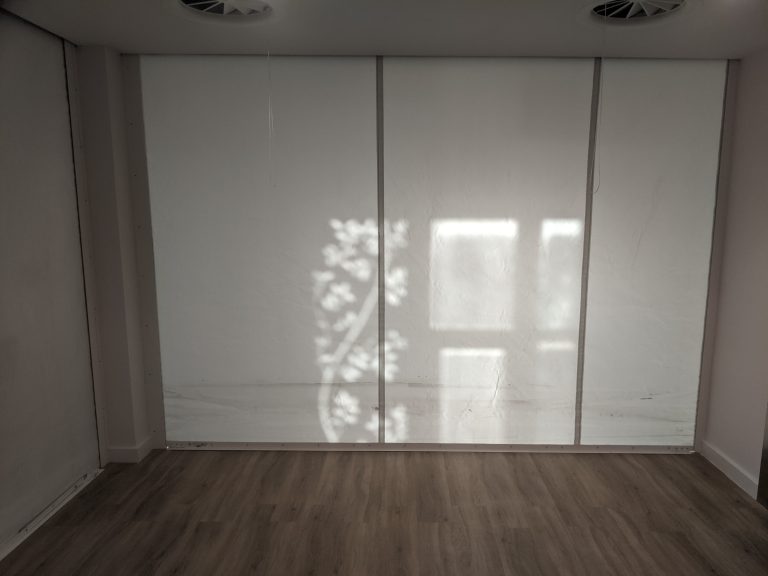

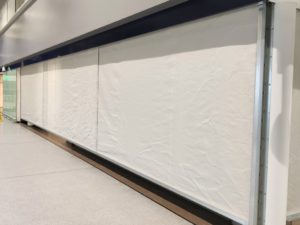

FireMaster A1 fire curtain

Applications: Atrium, Lobbies and Receptions, Opening in Walls, Egress and Corridor Separations, Boundary Protection, Compartmentation, Stairs and Escalators, Lifts and Lift Lobbies, Protected Means of Escape

Available in unlimited widths and drops up to 6 meters and with fixing options to suit all types of ceiling configurations, the FireMaster A1 active fire curtain barrier can be integrated with both solid and suspended ceilings and will remain hidden within the ceiling until deployed.

The FireMaster active fire curtain barrier is a vertical fire curtain barrier compliant to  BS EN 1634-1 and provides 180 minutes integrity and 30 minutes radiation control.

The ResQ-WindowTM is a vision panel that can be installed into this fire curtain and allows first responders to assess areas prior to entry.

The FireMaster fire curtain can also offer smoke control and is compliant to BS EN 1634-3 for Single Width curtains only up to 7m wide (See published standards for full listings).

Minimum widths achievable are as follows:
T Bar – 1300mm
Jumbo Bar – 900mm

FOR FIRE PROTECTION CLASSES EXPLAINED – click here

BIM and NBS Source

nbs source logo

DOWNLOAD BIM MODEL AND NBS SPEC

Coopers Fire can offer support with your BIM Project.
Find out more about Coopers Fire BIM capabilities and how we can help.

All fire and smoke curtains are manufactured to bespoke sizes. To discuss your requirements GET IN TOUCH

Downloads
Specification without Smoke Seals Download
Specification with Smoke Seals Download
Certificate (Certifire) Download
Brochure Download
Headbox Fixing, Bottom Bar and Capping Variations - PDF only Download
Headbox Fixing, Bottom Bar and Capping Variations - Full Drawing Pack Download
Headbox Sizes - T Bar - PDF only Download
Headbox Sizes - T Bar - Full Drawing Pack Download
Headbox Sizes - Jumbo Bar - PDF only Download
Headbox Sizes - Jumbo Bar - Full Drawing Pack Download
Side Guides Download
Fabric Datasheet Download

Resources

There are different features available for the Coopers Fire range of fire curtains and smoke curtain barriers. Click on the button below to find out more about Optional Extras, Drives and Controls, Site Wiring Diagrams and other product-related downloads.
